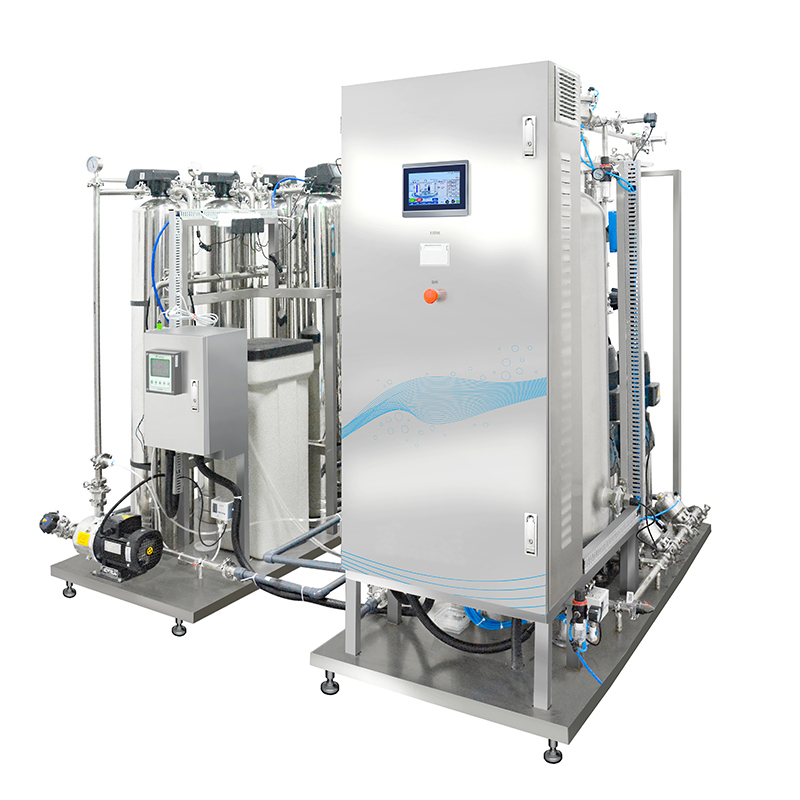

Hemodialysis Pure Water Equipment

The equipment is composed of tank filter (sand filter), carbon adsorption tank, softener, security filter (filter element filter), reverse osmosis device, transmission pipeline, disinfection system (including thermal disinfection device, chemical disinfection device), control software.

The quality of the produced water meets the American AAMI/AS AIO standard for dialysis water and YY0572-2015 Standard for Hemodialysis and Related Therapeutic water. Bacterial removal rate ≥99%, endotoxin < 0.125EU/mI, dissolved salt removal rate ≥99%, system clearance rate ≥99% no dead cavity.

Features:

1. Adopts PLC+ touch screen for centralized control, both automatic and manual.

2. Unique two-stage direct coupling process, without any intermediate water storage device, reducing the risk of bacterial growth.

3. Perfect diagnostic monitoring mechanism, real-time monitoring of operating parameters, if there is an anomaly, sound and light alarm, and self-protection.

4. With a variety of operating modes to choose, while with all levels of password, improve the security of equipment operation.

5. The membrane shell adopts the design of full circulation without dead cavity, and the vertical opening mode avoids the risk of water contaminated.

6. Use UPVC, PEX pipe or stainless steel pipe specification construction, "big cycle + small cycle" mode application, the whole process without dead cavity.

7. It has anti-leakage function, which not only protects the safety of dialysis hall but also ensures the safety of equipment (optional).

8. With dynamic water-saving technology, automatically adjust the displacement according to the number of hemodialysis machine.

9. With residual chlorine (optional), hardness, conductivity, flow, pressure and other online monitoring function, printing and alarm function.

10. Can be one-click start chemical disinfection, automatic operation, no manual intervention in the process, while with non-contact thermal disinfection device (optional), safe and convenient operation, no pollution to the environment.

11. Real-time device operation parameters are uploaded to the headquarters operation center through wireless network, and the data is centrally processed to provide a basis for fault prediction and diagnosis.

There are operation mode (long-term no interval operation), timing mode (no interval operation during work, no interval operation after work), standby mode (long-term interval operation), the standby period can automatically pulse flush membrane and pipeline.
