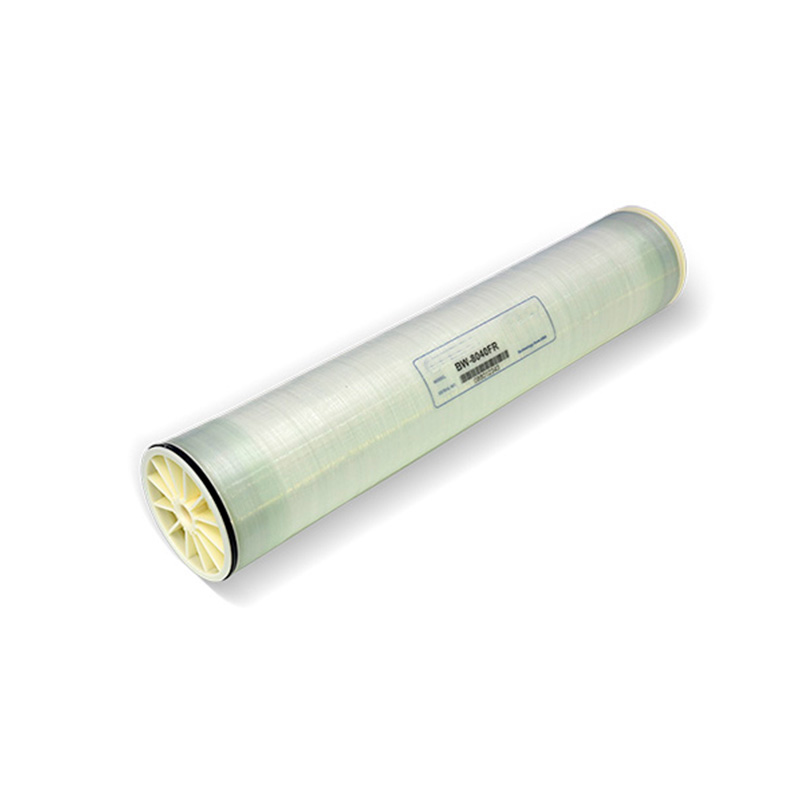

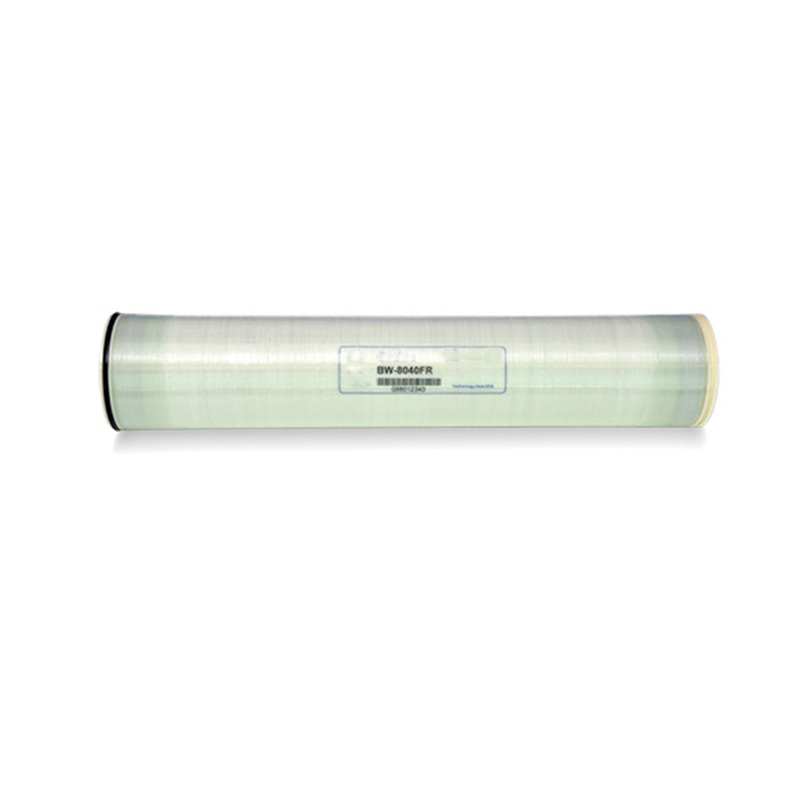

Industrial Brackish Water RO Membrane Element-BW-8040HF
Product Categary: Industrial Membrane Element
Feature: High rejection rate, large flux and excellent anti-fouling property.
E-mail: info@scclearpure.com
Tel： +86-13699279286 （whatsapp)
It is applicable to the desalination of surface water, groundwater and water treatment with salt concentration between 2000 and 8000ppm. It can be widely used in the medicine, chemical industry, beverage, electricity and other various industries etc..
Specifications & Parameters
Model |
Active Mebrane Area ft2 (m2) |
Concentrate Channel Space (mil) |
Permeate Flow GPD(m3/d) |
Stable Rejection Rate (%) |
Minimum Rejection Rate (%) |
BW-8040HF |
440(40.9) |
28 |
13000(49.2) |
99.5% |
99.4% |
Standard Test Condition
Concentration of Solution (NACL) |
Temperature (℃) |
pH Value |
Operation Pressure PSI (MPa) |
Recovery Rate (%) |
2000mg/L |
25 |
7.5-8 |
225(1.55) |
15% |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
Max.Working Pressure |
600 psi(4.14MPa) |
Max. FeedWater Temperature |
45 ℃ |
Max. FeedWaterSDI15 |
5.0 |
Max. Feed Water Flow |
17m3/h |
Free Chlorine Concentration of FeedWater |
0.1mg/L |
pH Range of Feed Water During Continuous Operation |
3-10 |
pH Range of FeedWaterDuring Chemical Cleaning |
1-13 |
Max. Pressure Drop of Single Membrane Element |
15psi(0.1Mpa) |
