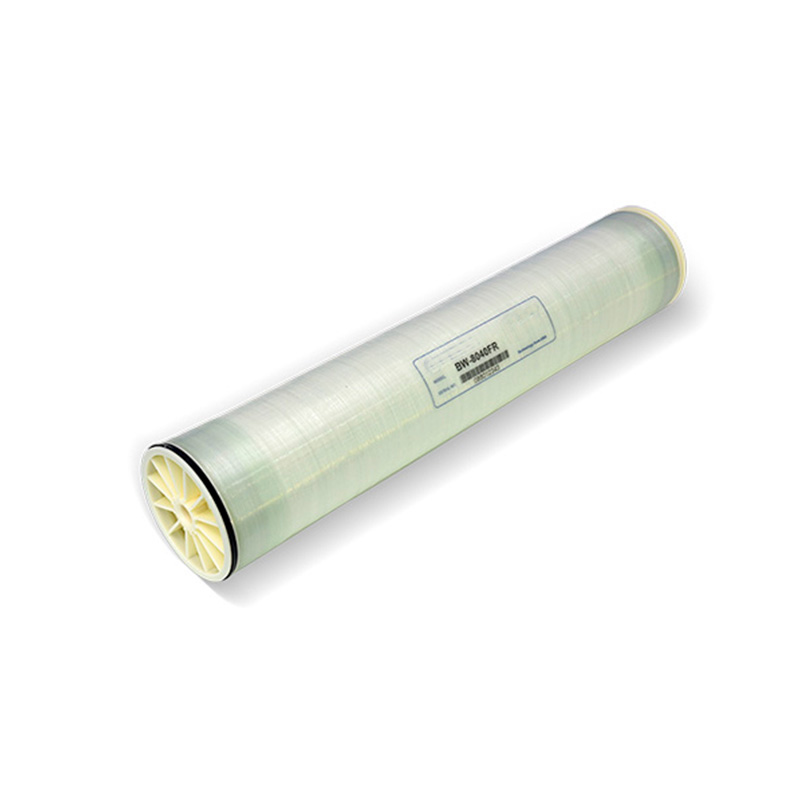

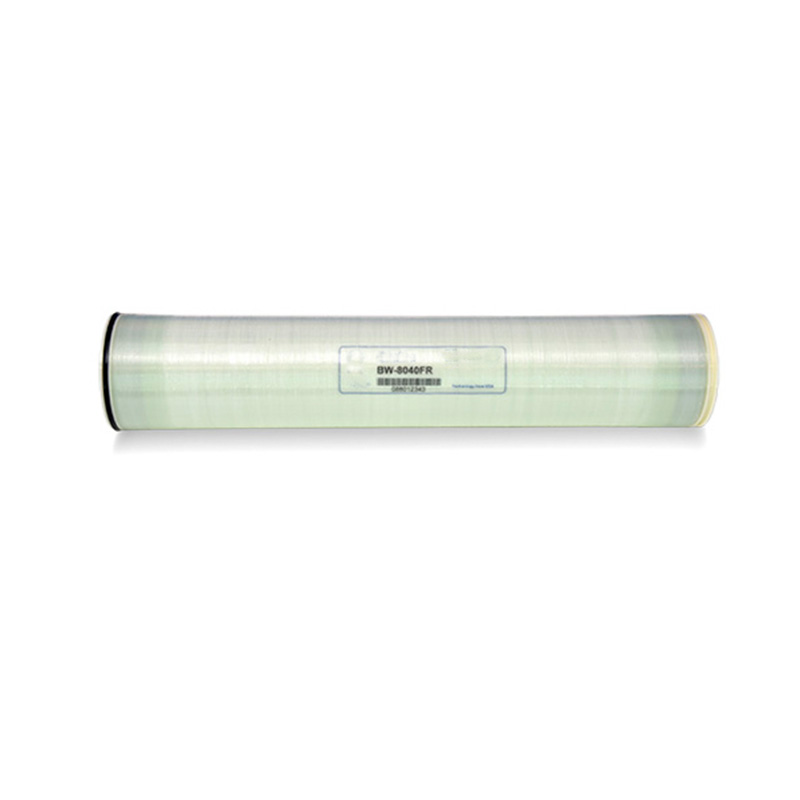

Industrial Extreme Low Pressure RO Membrane Element-XLP-8040
Product Categary: Industrial Membrane Element
Feature: It can save energy and increase economic efficiency with its advantage of extreme low working pressure.
E-mail: info@scclearpure.com
Tel： +86-13699279286 （whatsapp)
It is applicable to the desalination of municipal water, groundwater with salt concentration less than 1000ppm. It can be widely used in pure water preparation and related industries.
Specifications & Parameters
Model | Active Mebrane Area ft2 (m2) | Concentrate Channel Space (mil) | Permeate Flow GPD(m3/d) | Stable Rejection Rate (%) | Minimum Rejection Rate (%) |
XLP-8040 | 440(40.9) | 28 | 11000(41.6) | 99.2% | 99% |
Standard Test Condition
| Concentration of Solution (NACL) | Temperature (℃) | pH Value | Operation Pressure PSI (MPa) | Recovery Rate (%) |
500mg/L | 25 | 7.5-8 | 100(0.69) | 15% |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
| Max.Working Pressure | 600 psi(4.14MPa) |
Max. FeedWater Temperature | 45 ℃ |
Max. FeedWaterSDI15 | 5.0 |
Max. Feed Water Flow | 17m3/h |
Free Chlorine Concentration of FeedWater | 0.1mg/L |
pH Range of Feed Water During Continuous Operation | 3-10 |
pH Range of FeedWaterDuring Chemical Cleaning | 1-13 |
Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
