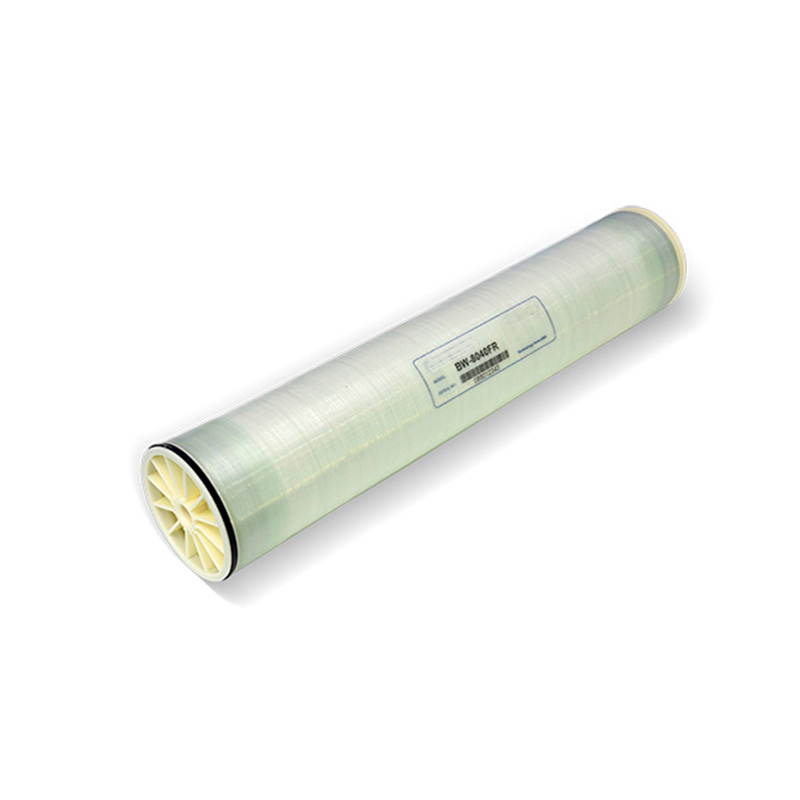

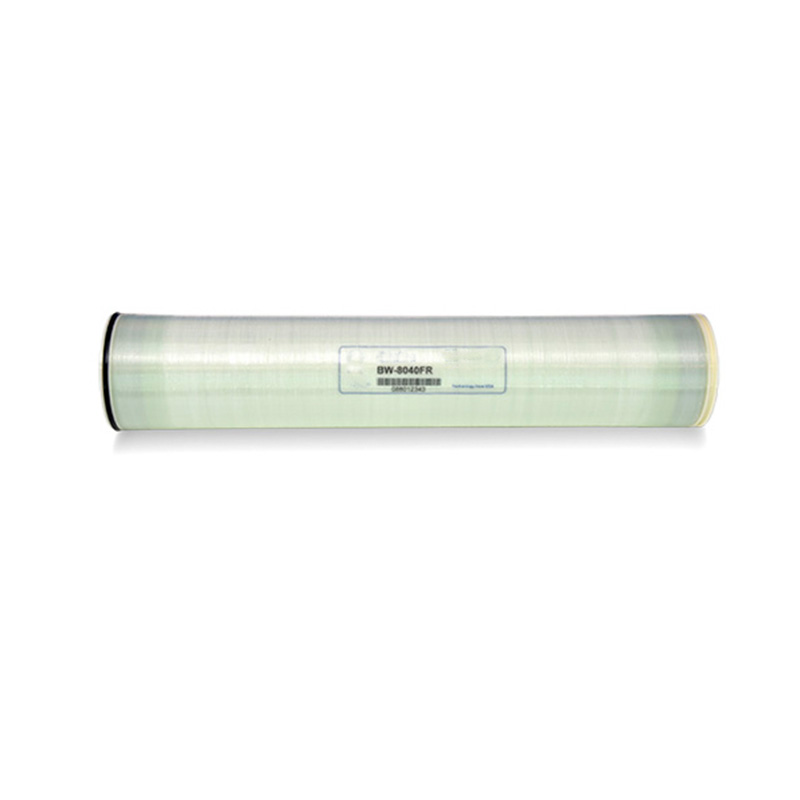

Industrial RO Membrane Element-BW-8040FR-Fouling Resistant
Features: High rejection rate, large flux and excellent anti-fouling property.
Application: desalination of TDS 2000 and 8000ppm
Industry: medicine, chemical industry, beverage, power plant...
E-mail: info@scclearpure.com
Tel： +86-13699279286 （whatsapp)
Specifications & Parameters
Model | Active Mebrane Area ft2 (m2) | Concentrate Channel Space (mil) | Permeate Flow GPD(m3/d) | Stable Rejection Rate (%) | Minimum Rejection Rate (%) |
BW-8040-FR | 365(33.9) | 34 | 9500(35.9) | 99.7% | 99.6% |
Standard Test Condition
| Concentration of Solution (NACL) | Temperature (℃) | pH Value | Operation Pressure PSI (MPa) | Recovery Rate (%) |
2000mg/L | 25 | 7.5-8 | 225(1.55) | 15% |
Notes: The permeate flow of single membrane element may vary with in ±15%.
Operating Limits and Conditions of Membrane Element:
Max.Working Pressure | 600 psi(4.14MPa) |
Max. FeedWater Temperature | 45 ℃ |
Max. FeedWaterSDI15 | 5.0 |
Max. Feed Water Flow | 17m3/h |
Free Chlorine Concentration of FeedWater | 0.1mg/L |
pH Range of Feed Water During Continuous Operation | 3-10 |
pH Range of FeedWaterDuring Chemical Cleaning | 1-13 |
Max. Pressure Drop of Single Membrane Element | 15psi(0.1Mpa) |
